KSO-393

Main parameters and technical characteristics of KSO-393

  • Rated voltage, kV: 6; 10
  • Maximum operating voltage, kV: 7,2; 12
  • Rated current of the main circuits, A: 400; 630
  • Rated busbar current, A: 630
  • Rated current of disconnection of chambers with a load switch, A: 630
  • Rated voltage of auxiliary circuits, V: 220
  • Rated voltage of metering circuits, V: 100
  • Rated voltage TSN, V: 380
  • Rated voltage of camera lighting, V: 36

Overall dimensions of the cameras, mm:

  • width: 800 (650)
  • height (with busbars): 1900
  • depth (at the base): 800

Weight of the camera is not more than, kg: 150

More

Description

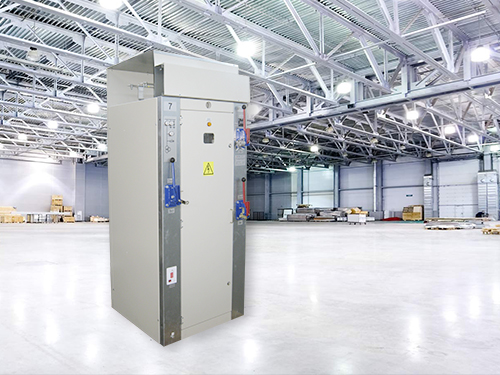

The KSO-393 chambers are designed to operate in electrical installations of three-phase alternating current of 50 and 60 Hz with a voltage of 6 and 10 kV for systems with an isolated or grounded neutral through an arc-extinguishing reactor.

Switchgears (RP) used for receiving, transmitting and distributing electricity are assembled from the KSO-393 chambers.

Single-line KSO 393 circuits can contain both simple switching devices (load switches and disconnectors) and vacuum circuit breakers controlled by RZA, MPZ and TM. KSO-393 cameras are used to complete distribution devices (RP) used for receiving, transmitting and distributing electricity to housing and communal services, construction, and urban electrical networks.
