Description

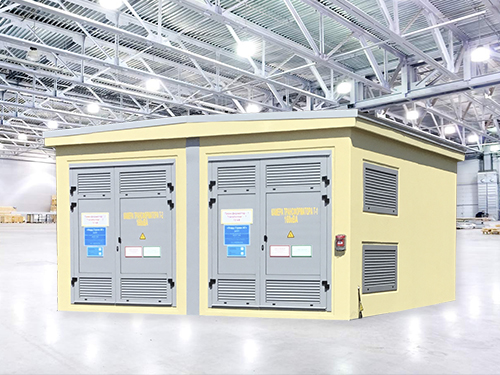

Block complete transformer substations BKTPB in a concrete shell are designed for receiving, converting and distributing electrical energy of three-phase alternating current with a frequency of 50 Hz rated voltage 0,4/ 6 (10) /20/35 kV. BKTP are designed for power supply of energy facilities, industrial, housing and communal facilities, as well as cottage settlements and individual development zones.
BKTP consists of blocks – concrete modules made of water-resistant high-strength reinforced concrete made with double reinforcement with a wall thickness of at least 100 mm. The product is supplied fully equipped with all the necessary equipment that allows the installation of the product within one working day, which significantly reduces the time of commissioning of the equipment. The delivery package includes a cable basement, which is also the foundation of the BCTPB, and a concrete roof in a single-pitched or gable design.
-
RUN includes cameras KSO-393, KSO-298, KRU R12, KM1F- produced by our company, as well as equipment of partner companies: ABB, Schneider Electric, etc.;
-
RUNN includes a low-voltage complete device of the «VARNET» series produced by our company, as well as other equipment in accordance with customer requirements;
-
Power transformers;
-
Cable connections provided by the design of the BCTP.
-
Shield of own needs (SCHSN);
-
OPS shield, telemechanics cabinet, and other equipment supplied in accordance with the project (questionnaire) to the substation.
